Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork

Brand Name : Shunyao Supply Chain

Place of Origin : Chengdu , China

MOQ : 100 PCS

Price : $800-1200

Payment Terms : T/T

Supply Ability : Excellent

Delivery Time : 5-15 days

Packaging Details : Bundles

Application : Industrial/Commercial

Loadcapacity : Up to 1000 kg/m²

Frametype : Welded/ Bolted

Package : Steel pallet

Shipment By : Container

Customization : Available

Design Style : Traditional

Usage : Warehouse/ Industrial/ Commercial

Spanrange : 6m to 40m

Design Parameter : Wind Load,Snow Load And Earthquake

Windloadresistance : Designed for local wind load standards

Load Bearing Capacity : High

Product : Steel Structure

Insulation : EPS, Glasswool, Rockwool, PU On Option

Size : Customized

Load Capacity : Up to 1000 kg/m²

Frame Type : Welded/Bolted

Span Range : 6m to 40m

Material Thickness : 1.5mm

Material Type : Q700 High-strength Steel

Weight : 24.7kg/m²

Reusable Times : 300 times

Demolding Time : 24h for columns, 36h for floors

Formwork Width : 65mm

Insulation Options : EPS, Glasswool, Rockwool, PU

Contact Now

Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction
This high-strength alloy steel formwork system represents a revolutionary advancement in building formwork technology. Manufactured from high-strength alloy steel through integral forming and laser-automated welding processes, it can be reused up to 300 times. With costs only one-third of aluminum alloy formwork, it seamlessly integrates with aluminum alloy formwork systems while significantly reducing construction timelines and expenses. This environmentally friendly building solution offers superior performance across various construction applications.
Technical Comparison
Item Plywood Formwork Aluminum Formwork High-strength Alloy Formwork
Size Single size, requires on-site cutting Modular, Serialized, Standardized Modular, Serialized, Standardized
Environmental Benefits High wood usage, Not environmentally friendly Low wood usage, Environmentally friendly Low wood usage, Environmentally friendly
Film Material 15mm Plywood 4.0mm Aluminum Board 1.5mm High-strength Alloy Board
Weight (kg/m²) 13.5kg/m² 23.5kg/m² 24.7kg/m²
Construction Efficiency More than 5 days/Floor 4 to 5 days/Floor 4 to 5 days/Floor
Time of Demolding At least 168h needed to demold floors 24h for column/shear wall, 36h for floors 24h for column/shear wall, 36h for floors
Concrete Quality Rough surface, prone to defects, requires plastering Smooth surface, bare concrete finishes, easy demolding Smooth surface, bare concrete finishes, easy demolding
Reusable Times Less than 10 times, prone to warping and damage More than 200 times, easy disassembly More than 300 times, easy disassembly
Material Loss Large loss with significant construction waste Low loss, easy to clean Low loss, easy to clean
Technical Requirements High technical requirements, professional technicians Low technical requirements, ordinary workers Low technical requirements, ordinary workers
Product Advantages
  • Convenient Construction: Streamlined design enables quick disassembly and assembly, significantly improving construction efficiency. Available in tie rod and flat tie configurations for different construction requirements.
  • High Cost Performance: Manufactured from Q700 high-strength steel with excellent compression, tensile, and bending properties. Stable and non-deforming with over 300 reuse cycles at one-third the cost of aluminum formwork.
  • Excellent Construction Effect: Flat surface panels with tight seams provide superior seismic resistance, waterproofing, anti-deformation, and anti-slurry leakage properties. Strong corrosion resistance with durable finish enhances project quality.
  • Accelerated Construction Progress: Configured with one formwork set and three support sets enables early formwork removal technology, reducing construction time by 1-2 days per layer. Manual layer-by-layer delivery reduces labor intensity and transportation costs.
Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork
Product Components
Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork
  • Strengthening Panel: 1.5mm thick specially treated Q700 steel with smooth surface, strong corrosion resistance, and enhanced molding effect and product lifespan.
  • Pin Hole: Strategically arranged around templates for assembly and gap adjustment using pins and pin pieces.
  • "Ω" Type Reinforced Back Rib: Provides excellent mechanical properties while reducing product weight through optimized design.
  • Formwork Border: 65mm width using 2.0mm thick cold-rolled high-strength steel with enhanced compression resistance, tensile strength, and impact resistance.

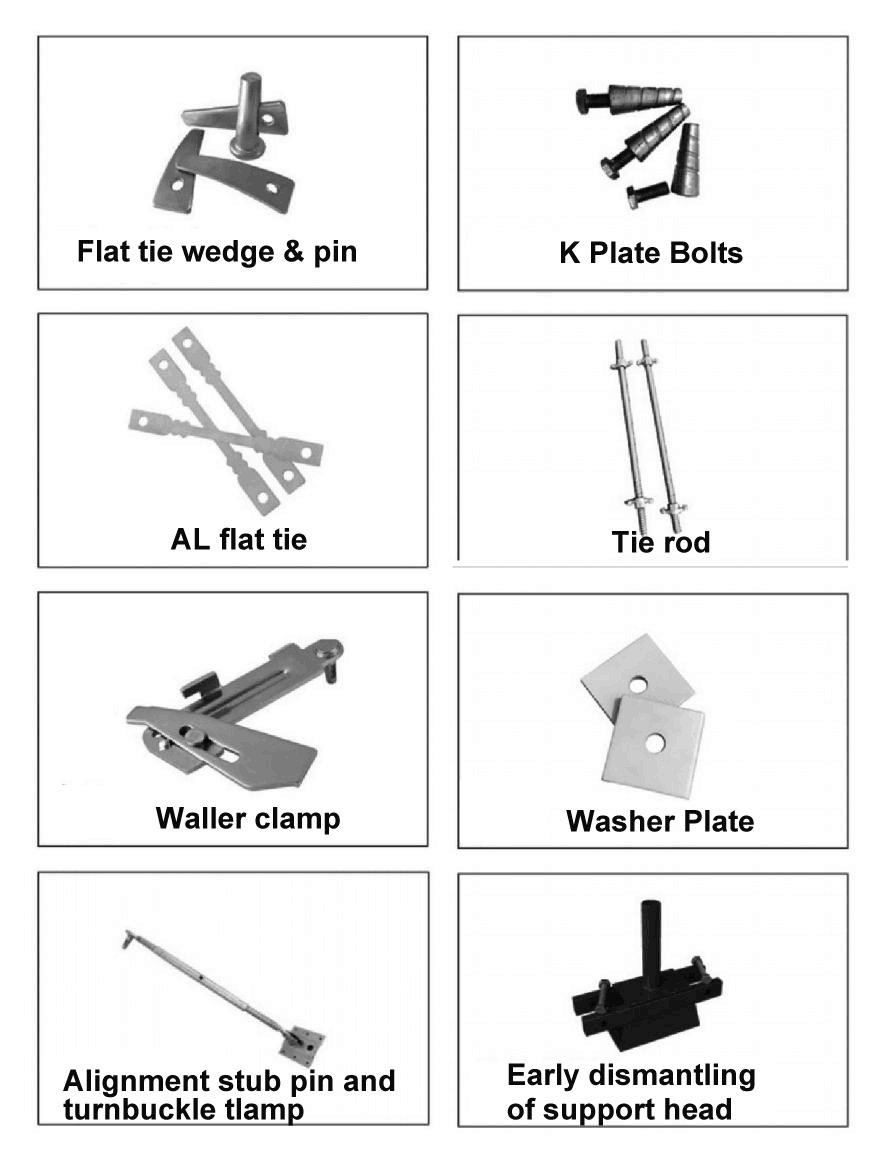

System Configurations
Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork
  • Tie Rod Type: Traditional "tie rod system" design following conventional wood formwork screw reinforcement methods. Features prefabricated holes for through-wall screws and horizontal steel back ribs, providing strong bearing capacity and structural stability.
  • Flat Tie Type: Innovative "flat tie system" inspired by aluminum formwork pull-tab reinforcement. Includes prefabricated pull-tab slots on formwork frames with one-time flat tie and square tube reinforcement. Offers simple installation and removal, suitable for various building structures including irregular shapes.
Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork Reuse 300 Times High-strength Alloy Steel Formwork System for Concrete Construction to Replace Aluminum Formwork
